This is the base class for any kind of object. More...

Detailed Description

This is the base class for any kind of object.

The kind of C3DBaseObject can be retrieved using GetKindOf, which returns OBJECT_KINDOF. This is a way to cast the C3DBaseObject pointer into to one of its subclasses. Objects can be instantiated, which means referenced several time through the scene. This is why the destructor is protected and you must use Delete instead.
Cf. Working with objects to get more details on objects and particularly C3DGeomObject.

#include <3DBaseObject.h>

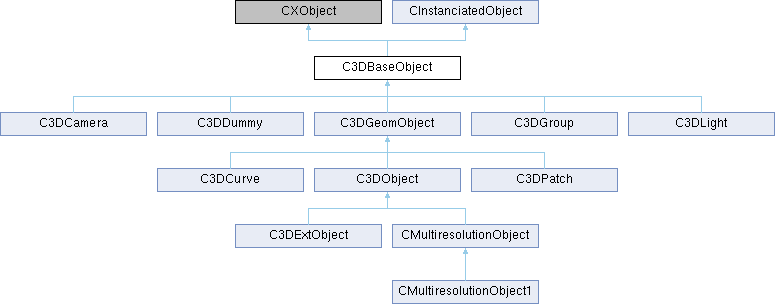

Inheritance diagram for C3DBaseObject:

Public Member Functions
virtual bool	DeleteFromNode ()

virtual void	PostSerialize (CXArchive &ar, bool lastCall)

virtual void	Serialize (CXArchive &ar)

virtual void	SetScene (C3DScene *scene)
	Associate the object to a scene. a GUID for that object in the scene is assigned.

C3DScene *	GetScene () const
	Get the associated object scene.

Object instanciation
objectGUID allows to get a single ID for a given object. This ID changed each time the object is copied, make any object having a single particular ID, except when object is instanciated. All the objects instanciation share the same objectGUID. Important: Instance of an object must be attached to a node, using C3DSceneNode::SetObject. Use AddRef otherwise. Note: When object are copied between different scene, object instance are kept but a copy of the source is made and it has a different objectGUID Instanciation does not support material or UV bindings Use C3DScene::CreateObjectInstance allow to create a new instance of the given object, or use Copy(OBJECT_COPY_CREATE_INSTANCE), then C3DSceneNode::SetObject
BaseObjectID	GetObjectID () const
	Return the node GUID depending on the scene. If no scene defined, CGuidMgr::UNDEFINED_GUID is returned.

int	GetInstanceCount () const
	Return the instance count. If the count then this is a single object that is referenced only one time in the scene.

bool	IsInstanciated () const
	return true if several instance of the object exists. The C3DSceneNode that reference these instances can be retrieved using C3DScene::GetInstancesByID

Checksum
These methods can be used to know if an object changed between two states. If the checksum changed then the object too.
unsigned int	GetCustomDataChecksum (unsigned int ignoreCustomID,...) const
	For object which are not geometric object, the checksum could be made on CustomData, and you can ignore some ID might be ignored if they content runtime value that does not reflect a change of the content. The list must be terminated by 0.

virtual unsigned int	GetChecksum (unsigned int checksumFlags=CHECKSUM_ALL) const
	When not overriden, the checksum is only made on the kind of object. When overidden, only the geometric data is taken into account. CustomData content is ignored, but if it is important a call to GetChecksum(unsigned int, ...) could be done.

Object invalidation
virtual bool	NeedUpdate () const

virtual bool	Update (C3DScene *scene, unsigned int updateMode)
	Information that have been invalidated are recomputed when calling this method.IsInstanciated.

virtual void	Invalidate (unsigned int objectInvalidationFlags, bool set=true)
	Notify that some information changed (combination of OBJECT_UPDATE_PROPERTIES invalidation flags) and invalidate related information, which will be updated in the Update call. The invalidated information is not destroyed until the next Update call.

virtual bool	InvalidateChannels (unsigned int channelType)
	Notify that channels that have cache should be recomputed (ie, UVW channel or normal channel for example). This give better control than Invalidate(OBJECT_INV_CHANNELS) which invalidate any channel information. We can specify with this method what need to be invalidated depending on the performed operation. Return true, if a cache has been invalidated.

unsigned int	GetInvalidateFlags () const
	Return the flags that have been invalidated.

bool	IsInvalidate (OBJECT_UPDATE_PROPERTIES flag) const
	Allow to know if an invalidate flag has been set. Invalidate flag is reset when Update is called.

longint	GetUpdateStamp (OBJECT_UPDATE_PROPERTIES flags) const
	Allow to know if the given flag changed between two call.

Final object
Some kind of object might computes a final object, that depends of different internal parameters. This is the case for C3DPatch for example where the final object depend on the subdivision level. Most of the time the object and the final object are the same Returns true if this object is the object to be display (GetFinalObject == this) or false if the object to display should be computed from using this internal information (C3DPatch for example)
virtual bool	IsFinalObject () const

virtual C3DBaseObject *	GetFinalObject (bool detach=false, bool computeIfNeeded=true)
	Returns the object itself or any kind of object. For example for a patch it can returns a C3DObject or a C3DPatch if the patch is not subdivided.

Object operations
virtual bool	MatrixTransform (const C4x4Matrix &matrix)
	Transform the 3D information with the given matrix. The object should not be instanciated or all instance are modified.

C3DBaseObject *	Copy (int copyflags=OBJECT_COPY_DEFAULT, C3DObjectCreator *objectCreator=NULL) const

Kind of object, flags and custom data
void	SetFlag (OBJECT_PROPERTIES flag, bool set)

void	SetFlags (unsigned int flags, bool set)

bool	IsFlagSet (OBJECT_PROPERTIES flag) const

bool	IsOneFlagSet (unsigned int flags) const

bool	CheckFlags (unsigned int checkflags, bool allSetOrNoneSet) const

virtual void	InheritFlags (const C3DBaseObject &srcObject, int copyflags=OBJECT_COPY_DEFAULT)
	This methods only inherits srcObject flags and custom data and optionaly objectGUID / instanceID if srcObject is to be replaced by the object. It does not modify the data structure.

CCustomData &	GetCustomData ()

const CCustomData &	GetCustomData () const

	operator C3DGeomObject * () const
	Operators (cast operators, return NULL if object is this or if the type is incorrect It does not perform any geometric or topologic conversions.

	operator C3DGroup * () const
	Cf. C3DGeomObject*().

	operator C3DObject * () const
	Cf. C3DGeomObject*().

	operator C3DCurve * () const
	Cf. C3DGeomObject*().

	operator C3DPatch * () const
	Cf. C3DGeomObject*().

	operator C3DDummy * () const
	Cf. C3DGeomObject*().

	operator C3DLight * () const
	Cf. C3DGeomObject*().

	operator C3DCamera * () const
	Cf. C3DGeomObject*().

bool	IsGeomObject () const
	return true if the object is an OBJECT_GEOM. Cf. OBJECT_KINDOF

OBJECT_KINDOF	GetKindOf () const
	return OBJECT_KINDOF, which defines the kind of object.

CXString	GetTypeString () const
	return a string containing the kind of the object ("curve", "camera"...)

Public Member Functions inherited from CInstanciatedObject
virtual bool	Delete ()

int	GetRefCount () const

int	AddRef () const

Static Public Member Functions
static C3DBaseObject *	Create (OBJECT_KINDOF kindOf)
	Allocates and creates a new empty object of the given type OBJECT_KINDOF. Uses xNew internally.

Member Function Documentation

◆ GetChecksum()

virtual unsigned int C3DBaseObject::GetChecksum ( unsigned int checksumFlags = CHECKSUM_ALL ) const

virtual

When not overriden, the checksum is only made on the kind of object. When overidden, only the geometric data is taken into account. CustomData content is ignored, but if it is important a call to GetChecksum(unsigned int, ...) could be done.

Reimplemented in C3DCamera, C3DDummy, and C3DGeomObject.

◆ GetFinalObject()

virtual C3DBaseObject * C3DBaseObject::GetFinalObject	(	bool	detach = `false`,
		bool	computeIfNeeded = `true`
	)

inlinevirtual

Returns the object itself or any kind of object. For example for a patch it can returns a C3DObject or a C3DPatch if the patch is not subdivided.

Reimplemented in C3DCamera, C3DLight, and C3DPatch.

◆ InheritFlags()

virtual void C3DBaseObject::InheritFlags	(	const C3DBaseObject &	srcObject,
		int	copyflags = `OBJECT_COPY_DEFAULT`
	)

virtual

This methods only inherits srcObject flags and custom data and optionaly objectGUID / instanceID if srcObject is to be replaced by the object. It does not modify the data structure.

Reimplemented in C3DGeomObject.

◆ Invalidate()

virtual void C3DBaseObject::Invalidate	(	unsigned int	objectInvalidationFlags,
		bool	set = `true`
	)

virtual

Notify that some information changed (combination of OBJECT_UPDATE_PROPERTIES invalidation flags) and invalidate related information, which will be updated in the Update call. The invalidated information is not destroyed until the next Update call.

Reimplemented in C3DGeomObject, and C3DPatch.

◆ InvalidateChannels()

virtual bool C3DBaseObject::InvalidateChannels ( unsigned int channelType )

virtual

Notify that channels that have cache should be recomputed (ie, UVW channel or normal channel for example). This give better control than Invalidate(OBJECT_INV_CHANNELS) which invalidate any channel information. We can specify with this method what need to be invalidated depending on the performed operation. Return true, if a cache has been invalidated.

Reimplemented in C3DGeomObject, and C3DPatch.

◆ MatrixTransform()

virtual bool C3DBaseObject::MatrixTransform ( const C4x4Matrix & matrix )

virtual

Transform the 3D information with the given matrix. The object should not be instanciated or all instance are modified.

Reimplemented in C3DGeomObject.

◆ operator C3DGeomObject *()

C3DBaseObject::operator C3DGeomObject * ( ) const

Operators (cast operators, return NULL if object is this or if the type is incorrect It does not perform any geometric or topologic conversions.

◆ SetScene()

virtual void C3DBaseObject::SetScene ( C3DScene * scene )

virtual

Associate the object to a scene. a GUID for that object in the scene is assigned.

Reimplemented in C3DCamera, and C3DPatch.

◆ Update()

virtual bool C3DBaseObject::Update	(	C3DScene *	scene,
		unsigned int	updateMode
	)

virtual

Information that have been invalidated are recomputed when calling this method.IsInstanciated.

Reimplemented in C3DGeomObject, and C3DPatch.

The documentation for this class was generated from the following file:

D:/VS2022-PolygonCruncherSDK-Full-IO/SDK/Includes/3DBaseObject.h
