A CChannel is the base class for some additional information associated to an object. More...

Detailed Description

A CChannel is the base class for some additional information associated to an object.

CChannel is used to store UV textures, vertex colors or anything else through different channel classes (CUVWChannel, CVCChannel, CPointNormalChannel, CSpecNormalChannel...).

: CChannel usually contains faces and points, but not necessary such CFaceNormalChannel with only contains a list of vector (one vector per geometry face).
When CChannel has faces, it is assumes that CChannel::GetFaceList::GetSize = C3DFaceList::GetSize.
Some channel faces might be unused, and it that case it is flag with FACE_IS_UNUSED, meaning that the face has no relative data.
A CChannel with faces can have any number of points. This number is not necessary the same than object 3D points number, as you can have one or more information per 3D points.

: CChannel integrates a Clean method which make easier synchronisation between the 3D points and the channel points. Each #i face in the channel is removed if the corresponding face #i face in the object C3DFaceList has the FACE_IS_INVALID flag.

#include <Channel.h>

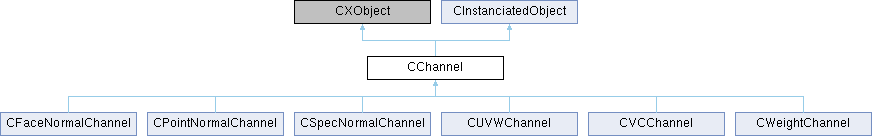

Inheritance diagram for CChannel:

Public Member Functions
	CChannel (ChannelID id=CHANNELID_UNDEFINED)
	You may assign a specific channel id at creation. This is useful to make a known reference between material and front / back UV channel for example. Note : If id = CHANNELID_UNDEFINED, the id is automatically assigned when adding the channel to object channels. If id != CHANNELID_UNDEFINED, the id might be modified if it already exists in object channels.

virtual	~CChannel ()
	Use Delete instead, unless the CChannel is created on the stack (take care that it is referenced once only in this case)

void	FreeExtra ()
	Release any extra memory attached to the channel.

Flags informations
void	SetFlag (CHANNEL_PROPERTIES flag, bool set)

void	SetFlags (unsigned int newflags, bool set)

bool	IsFlagSet (unsigned int flag) const

bool	IsOneFlagSet (unsigned int flag) const

CCustomData &	GetCustomData ()

ChannelID	GetChannelID () const
	The channel ID allows to rely a specific material to a specific channel. This is not a GUID (different object might different channel with the same ID, allowing a material to retrieve the UV channel to use for example)

CXString	GetTypeString () const

Channel informations
CFaceList *	GetFaceList ()

CPointList *	GetPointList ()

Channel information
void	SetFaceList (Channel3DType channeltype, CFaceList *newfaces, bool deletePrevious=true)
	Attach a face list to the channel. newfaces is owned by the channel, and should not be deleted by the caller.

void	SetPointList (Channel3DType channeltype, CPointList *newpoints, bool deletePrevious=true)
	Attach a point list to the channel. newpoints is owned by the channel, and should not be deleted by the caller.

Channel3DType	GetType () const

graph functions
void	InitGraph (const CGeomInfo *)

void	DeleteGraph ()

ChannelConnectionInfo *	GetChannelPointsConnectedToPoint (int point, int &size)
	Return UVs connected to the point. size is the number of ChannelConnectionInfo * array entries for point index.

ChannelConnectionInfo *	GetChannelPointsConnectedToPoint (int point, int &size, int &facesize)
	facesize is the number of faces connected to the point, which might be different than size if some face has invalid or unused UV

CPt *	GetChannelPointIndex (int facenbr, int pointindex)

Operation on the channel
virtual bool	SwapCoordinates (unsigned int swapMode)

virtual bool	MatrixTransform (const C4x4Matrix &matrix, POINT_PROPERTIES property=POINT_NONE, bool set=TRUE, int index=0, int count=-1)

virtual bool	CleanRemoveDuplicateIndex ()

virtual bool	Clean (const CGeomInfo info, CXUIntArray newfaceindex=NULL, CXUIntArray *newpointindex=NULL)

virtual bool	Weld (const CGeomInfo *info, double tolerance)

virtual function
virtual bool	Compare (const CChannel *channel) const
	Return true if the channel have same type and same content.

virtual bool	Compare (const CPt pt1, const CPt pt2, double tolerance=0.0f) const

virtual void	Serialize (CXArchive &ar)

virtual bool	CanBeRecomputed ()

virtual void	Inherit (const CChannel &srcChannels)

virtual CChannel *	Copy (unsigned int copyFlags) const

Public Member Functions inherited from CInstanciatedObject
virtual bool	Delete ()

int	GetRefCount () const

int	AddRef () const

Static Public Member Functions
static CChannel *	Create (Channel3DType type, ChannelID id=CHANNELID_UNDEFINED)
	Allocates and creates a new channel. Use Delete if the channel is not attached to a CDependentChannel list. //!< If id = CHANNELID_UNDEFINED, the id is automatically assigned when adding the channel to object channels. If id != CHANNELID_UNDEFINED, the id might be modified if it already exists in object channels.

Member Function Documentation

◆ Compare()

virtual bool CChannel::Compare ( const CChannel * channel ) const

virtual

Return true if the channel have same type and same content.

Reimplemented in CUVWChannel.

The documentation for this class was generated from the following file:

D:/VS2022-PolygonCruncherSDK-Full-IO/SDK/Includes/Channel.h
