CFaceList is the common base class for a lot of different classes (C3DFaceList, CUVWFaceList...) More...

Detailed Description

CFaceList is the common base class for a lot of different classes (C3DFaceList, CUVWFaceList...)

Every faces is an index array (of at least 3 indexes) that refers to another list (usually points or vectors). Faces are gather together in a CFaceList, which is in fact an array of array.

CFaceList offers all methods to get/set the face indexes, to modify these indexes and associates any kind of data to faces
CFaceList includes different relationship graph to find easily who is connected with who. Cf. Working with faces to get advanced details on the way using CFaceList.

Note: As CFaceList inherits from CInstanciatedObject, it can be referenced multiple time. Use CPointList::Delete instead of delete to delete the list.

#include <FaceList.h>

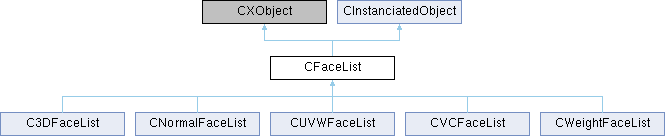

Inheritance diagram for CFaceList:

Public Types
enum	SetSizeMode { DEFAULT = 0 , FREE_EXTRA , GROW_MODE }

Public Member Functions
	CFaceList (CFaceList *srcFaces)

virtual CFace *	CreateFace () const =0
	Get a face object the appropriate derived face type (ie it will return a C3DFace, with C3DFaceList, CNormalFace with CNormalFaceList...). Call CFaceList::ReleaseFace when you do not need it anymore.

void	ReleaseFace (CFace *face) const
	Release a face created with CFaceList::CreateFace.

bool	GetFace (unsigned int index, CFace &face) const

bool	GetFace (unsigned int index, CFace &face)

int *	GetIndexes (unsigned int index, int &size) const

int	IsFaceIndex (unsigned int faceindex, int pointindex) const
	Check if point index belong to face. Return the index position of this pointindex or POINT_NOT_BELONG_TO_FACE) const;.

int *	SetFaceSize (unsigned int index, int size, FACE_PROPERTIES invalidFlag=FACE_IS_INVALID)
	Set the number of indexes for the given face index. If size < 3, then invalidFlag flag is set, if size >= 3 the flag is removed. For channel flags, FACE_IS_UNUSED should be used to keep the same number of faces between 3d faces and channel faces, if the matching 3d face is not set to invalid on a clean operation.

unsigned int	GetFaceFlags (unsigned int index) const

bool	IsFaceFlagSet (unsigned int index, FACE_PROPERTIES flag) const

bool	CheckFaceFlags (unsigned int index, unsigned int flags, bool allSetOrNoneSet) const

bool	IsFaceOneFlagSet (unsigned int index, unsigned int flags) const

void	SetFaceFlag (unsigned int index, FACE_PROPERTIES flag, bool set)

void	SetFaceFlags (unsigned int index, unsigned int flags, bool set)

int	CollectIndexes (unsigned int index, CHashTable< int > &hash, bool erase=false) const
	Add the face indexes to the hash, and return the adedd count.

bool	CopyFace (unsigned int dstindex, unsigned int srcindex, bool inheritPropertiesOnly=false)
	Copy srcindex face to dstindex face. inheritPropertiesOnly = true means only flags and properties are copied, otherwise indexes are also copied.

bool	CopyFace (unsigned int dstindex, unsigned int srcindex, const CFaceList &srcfacelist, bool inheritPropertiesOnly=false)
	Copy a face from another face list.

bool	CopyFace (unsigned int dstindex, const CFace &srcface, bool inheritPropertiesOnly=false)

void	CopyTo (int index, CSingleFace &face) const

void	CopyFrom (int index, const CSingleFace &face)

virtual void	Serialize (CXArchive &ar)

void	RemoveAll ()

void	PreAllocate (int estimatedFaceNbr, int estimatedIndexNbr, bool constructAllElementsOnce=false)
	Preallocate the data with an estimated face nbr and total indexes count for the whole face set. The method removes any existing data.

void	SetSize (int size, SetSizeMode sizeMode, int defaultFaceSize=FACELIST_DEFAULT_INDEX_NBR)
	Resize the size of the number of face. If growOnly, memory is not reallocated if buffer's size decrease.

void	SetSize (int size, int defaultFaceSize=FACELIST_DEFAULT_INDEX_NBR, SetSizeMode sizeMode=DEFAULT, int growFaceMode=-1)
	Resize the size of the number of face. If growOnly, memory is not reallocated if buffer's size decrease.

void	SetSize (int size, unsigned int *initialSize, int defaultFaceSize=FACELIST_DEFAULT_INDEX_NBR, int growFaceMode=-1)
	This reset the face and initialize it again.

void	SetSize (const CFaceList &srcfaces, int growFaceMode=-1)
	Reset face list and get faces size from srcfaces face list. No data is copied, only size are preallocated.

void	ExpandSize (const CFaceList &srcfaces)
	Expand the face list with srcfaces sizes. No data is copied, only size are preallocated. The method grows the faces (if needed), so CFaceList::PreAllocate can be used.

void	FreeExtra ()

bool	RemoveDataChunk (DataChunkID id)
	Remove the data chunk specified by its id.

unsigned int	AddDataChunk (DataChunkID id, CElementMethods *methods)
	Add a data chunk defined by an id and methods which give the way to construct / destroy the data chunk data.

void *	GetDataChunk (DataChunkID id, unsigned int index) const
	Return the data chunk for index face. The returned data can be cast accordingly giving the data chunk id.

CFacePropertyData *	GetMainDataChunk (unsigned int index) const
	return the main data chunk for index. The main data chunk is a chunk like another one, but with faster access. It contains the flags, and it can be cast to C3DFacePropertyData, as it also contain the material

void	AppendDataChunks (CFaceList *srcFaces, bool copyEmpty=true)
	Copy the data chunks that exists in the provided srcFaces list. If copyEmpty = true, the data chunk are created empty. Otherwise they are copied from the source face list.

unsigned int	GetDataChunkNbr () const
	Return the number of data chunk in the face list.

const CDataChunk &	GetDataChunks () const
	Return the class that handles the data chunks.

SIZET	GetSizeOfData (DataChunkID id) const
	Return the data size of one element of the given data chunk.

int	GetSize () const
	Return the number of faces of the list.

void	SaveFacesIndex (unsigned int dataChunkID=FACE_ORIGINAL_INDEX_CHUNK)
	Save face indexes in a specific FACE_ORIGINAL_INDEX_CHUNK data chunk. Face index can be retrieve after, after a process that delete some faces or reorder them.

unsigned int	GetOriginalIndex (unsigned int index, unsigned int dataChunkID=FACE_ORIGINAL_INDEX_CHUNK) const
	Retrieve the original index of the face.

bool	AreFacesConnected (const CGeomInfo *info, CHashTable< int > &facesSet)

void	GetEdgesOnBorder (CEdgeGraph &borderMap, CHashTable< int > &faces)

void	FlipFaces (FACE_PROPERTIES properties=FACE_NONE, bool musthave=true)
	Reverse the indexes order. For a 3D face, a side effect is the normal inversion.

unsigned int	TagFaces (CGeomInfo *info, CFaceTagger &faceTagger, bool exploreByEdge)
	Create group of faces which points/edges are delimited by a given property.

bool	Clean (const CGeomInfo *info)
	Clean faces with FACE_IS_INVALID status defined.

bool	Clean (const CGeomInfo info, bool cleanFaces, CXUIntArray newfacesindex=NULL)
	Clean faces with FACE_IS_INVALID status defined and get an array contains the new to old index position (useful to clean external data too).

bool	ReorderFaces (const unsigned int *neworder, unsigned int size, bool moveToDestinationIndexes)
	Reorder faces given the order specified by neworder. If moveToDestinationIndexes is true : Face[0] goes to face[neworder[0]], otherwise Face[neworder[0]] goes to face[0]. -1 in the array means no order changes.

bool	UpdateIndex (const unsigned int *newpointindex, unsigned int bufsize, bool onlyValidFaces=true)

bool	UpdateIndex (CXUIntArray *newpointindex, bool onlyValidFaces=true)
	Same method with a CXUIntArray class.

void	SetSizeAndFlags (int newsize, unsigned int flags)
	Set face size and flags.

void	SetSizeAndFlags (const CFaceList &faces, unsigned int flags)
	Set faces which size are the same than provided faces list and set flags for these faces.

void	ExpandSizeAndFlags (const CFaceList &faces, unsigned int flags)
	Increase face size and set flags for the new faces.

void	SetFlag (FACELIST_PROPERTIES flag, bool set)

bool	IsFlagSet (FACELIST_PROPERTIES flag) const

unsigned int	GetChangedStamp () const

bool	IsTriangular (FACE_PROPERTIES properties=FACE_NONE, bool musthave=true) const

bool	HasQuadrangle (FACE_PROPERTIES properties=FACE_NONE, bool musthave=true) const

bool	HasNGons (FACE_PROPERTIES properties=FACE_NONE, bool musthave=true) const

unsigned int	GetFaceCount (unsigned int edgenbr, FACE_PROPERTIES properties=FACE_NONE, bool musthave=true) const

unsigned int	GetIndexesCount (FACE_PROPERTIES properties=FACE_NONE, bool musthave=true) const

bool	InheritFlags (CFaceList &srcList, FACE_PROPERTIES srcflag, FACE_PROPERTIES dstflag, bool accumulate)

int	GetNumberOfFaces (FACE_PROPERTIES, bool set) const

int	GetNumberOfFaces (unsigned int property, bool set) const

void	SetFacesFlags (unsigned int first, unsigned int last, unsigned int flags, bool set)

void	SetFacesFlags (unsigned int flags, bool set)

void	SetFacesSize (unsigned int facesize)

const C3DEdgeArray *	InitEdgeArray ()
	Always return an array (even if empty) containing all edge of the face list, without connection information.

void	DeleteEdgeArray ()
	A call to DeleteEdgeArray must be balanced for each call to InitEdgeArray.

int	InitEdgeToFaceGraph (const CGeomInfo *info)
	Init Edge graph which is a map containing each different edge and their connections. Return the number of edges of the graph. Needed for any methods that required information about connections.

void	DeleteEdgeToFaceGraph ()
	Release the edge graph when no longer needed. Any call to InitEdgeToFaceGraph must be followed by a call to DeleteEdgeToFaceGraph.

const int *	GetFacesConnectedToEdge (const C3DEdge &, int &size)
	Get faces connected to an edge. The returned array has size indexes.

CEdgeGraph &	GetEdgeGraph (void)
	Get the CEdgeGraph.

void	SetBorderFacesStatus (void)

int	InitPointToFaceGraph (const CGeomInfo *info)

void	DeletePointToFaceGraph ()
	Release the point to face graph. Any call to InitPointToFaceGraph must be followed by a call to DeletePointToFaceGraph.

bool	HasPointToFaceGraph () const
	Return true if the point to face graph is computed.

const int *	GetFacesNeighbourg (CFaceGraphHelper &helper, int faceindex, ConnectionInfoType type, int &size)

int	GetFacesNeighbourg (CHashTable< int > &hash, int faceindex, ConnectionInfoType type, bool clearhash)

const int *	GetFacesConnectedToPoint (int, int &size) const

int	GetFacesConnectedToPoints (CHashTable< int > &hash, int point1, int point2, ConnectionInfoType type, bool clearhash) const

const int *	GetFacesConnectedToPoints (CFaceGraphHelper &helper, int point1, int point2, ConnectionInfoType type, int &size) const

int	GetPointsConnectedToPoints (CHashTable< int > &hash, int point1, int point2, ConnectionInfoType type)

const int *	GetPointsConnectedToPoints (CFaceGraphHelper &helper, int point1, int point2, ConnectionInfoType type, int &size)

const int *	GetPointsConnectedToEdge (CFaceGraphHelper &helper, int point1, int point2, int &size, bool excludePt1AndPt2)

const int *	GetPointsNeighbourg (CFaceGraphHelper &helper, int pointindex, int &size, ConnectionInfoType type)

bool	IsPointNeighbourg (CFaceGraphHelper &helper, int index, int isNeighbourgIndex)

bool	DoesEdgeExists (const C3DEdge &edge, int face=-1) const

int	GetFacesByOppositeEdges (CFaceGraphHelper &helper, int point1, int point2, ConnectionInfoType type, CEdgeGraph &edgeGraph)

bool	IsIsolatedFace (int facenbr) const

int	GraphRemoveFaceReference (CGeomInfo *info, int faceindex, bool setAlonePointsToInvalid)

int	GraphMergePointConnectivity (int, int)

bool	GraphDisconnectFace (int ptindex, int faceindex)

bool	GraphConnectFace (int ptindex, int faceindex)

virtual unsigned int	GetChecksum (unsigned int checksumFlags=CHECKSUM_FACES\|CHECKSUM_FACES_EXTRA) const
	Return a value that is a simple way to check if the geometry changed between two call to the method.

virtual void	Inherit (const CFaceList &reffaces)

virtual CFaceList &	operator= (const CFaceList &reffaces)

Public Member Functions inherited from CInstanciatedObject
virtual bool	Delete ()

int	GetRefCount () const

int	AddRef () const

Member Enumeration Documentation

◆ SetSizeMode

enum CFaceList::SetSizeMode

Defines the way SetSize size down or not the index memory block

Enumerator
DEFAULT	Memory block is shrink down if specified size is below existing size.
FREE_EXTRA	Free any extra memory and do not allocate any extra memory The number of face is growing, but we don't know the exact size. Preallocate is first called with an estimated #number of faces, SetSize is then called several time with and increasing number of face (GROW_MODE), and finally called a last time with the definitive number of face.

Member Function Documentation

◆ CreateFace()

virtual CFace * CFaceList::CreateFace ( ) const

pure virtual

Get a face object the appropriate derived face type (ie it will return a C3DFace, with C3DFaceList, CNormalFace with CNormalFaceList...). Call CFaceList::ReleaseFace when you do not need it anymore.

Implemented in C3DFaceList, CNormalFaceList, CUVWFaceList, CVCFaceList, and CWeightFaceList.

◆ PreAllocate()

void CFaceList::PreAllocate	(	int	estimatedFaceNbr,
		int	estimatedIndexNbr,
		bool	constructAllElementsOnce = `false`
	)

Preallocate the data with an estimated face nbr and total indexes count for the whole face set. The method removes any existing data.

When filling the faces, SetSize must be called using GROW_MODE, otherwise faces array will be resized, loosing the preallocation advantages use constructAllElementsOnce carefully as it construct all elements (even if they are not used)

◆ TagFaces()

unsigned int CFaceList::TagFaces	(	CGeomInfo *	info,
		CFaceTagger &	faceTagger,
		bool	exploreByEdge
	)

Create group of faces which points/edges are delimited by a given property.

This property is implemented by the caller through the faceTagger method.

exploreByEdge = true
the faces are explored using an edge connection
exploreByEdge = false
the faces are explored using a point connection.
this is the slowest exploration mode as CFaceTagger::BelongToGroup is called for each face corner

Returns: The method returns the number of created group. Gather face together in a CFaceTagger object.

The documentation for this class was generated from the following file:

D:/VS2022-PolygonCruncherSDK-Full-IO/SDK/Includes/FaceList.h
