This is the base class for any object that can be animated using C3DKeyframe. More...

Detailed Description

This is the base class for any object that can be animated using C3DKeyframe.

The C3DSceneNode derived from this class and handles KEYFRAME_MATRIX, KEYFRAME_SCALE, KEYFRAME_ROT, KEYFRAME_TRANS keyframes. It is possible to add / remove keyframe of any kind and to evaluate the interpolation of 2 keyframes

#include <3DAnimatable.h>

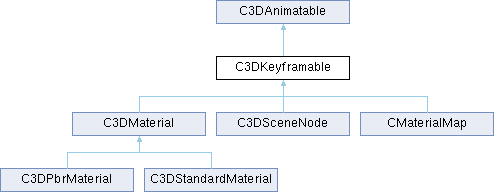

Inheritance diagram for C3DKeyframable:

Public Types
enum	TimeStamp { INVALID_TIME = -1 }

enum	KeyframeFlags { KEYFRAME_NONE = 0x00 , KEYFRAME_REPLACE_KEY = 0x01 , KEYFRAME_DONT_EVALUATE = 0x02 }

typedef enum C3DKeyframable::TimeStamp	TimeStamp

Public Types inherited from C3DAnimatable
enum	FindKey { KEYFRAME_PREV = 0x01 , KEYFRAME_NEXT = 0x02 , KEYFRAME_SAME = 0x04 }

Public Member Functions
int	AddKey (int time, C3DKeyframe *newkey)
	Return -1 if fails or keyframe number.

int	AddKey (int time, const C3DKeyframe &newkey)
	Return keyframe number.

int	DeleteKey (int time, longuint classid=KEYFRAME_NULLID)
	If time = INVALID_TIME, then all key of classid are deleted or all keys are deleted if classid = KEYFRAME_NULLID.

void	DeleteAllKeys ()

C3DKeyframe *	CreateKey (int time, longuint classid, unsigned int flags=KEYFRAME_NONE)
	Create key of the given classid. flags is one or more KeyframeFlags.

C3DKeyframe *	GetKeyByIndex (unsigned int index, int *time=NULL, longuint classid=KEYFRAME_NULLID)
	This invalidate the cache, and can lead to slower computation.

const C3DKeyframe *	GetConstKeyByIndex (unsigned int index, int *time=NULL, longuint classid=KEYFRAME_NULLID) const

int	GetKeyNbr (longuint classid=KEYFRAME_NULLID) const

bool	Evaluate (int time, C3DKeyframe &findkey) const
	This method evaluate the key at the given time. Same but slower that the following method that return a pointer.

const C3DKeyframe *	Evaluate (int time, longuint classid) const
	This method evaluate the key at the given time. This is the fastest method. The key content cannot be changed.

int	CopyKeys (const C3DKeyframable *srckeys, longuint classid=KEYFRAME_NULLID, CTimeRange range=CTimeRange(0, CTimeRange::MAX_TIME))
	Copy key of the given classid in the given time range.

bool	operator== (const C3DKeyframable &refkeys) const

bool	operator= (const C3DKeyframable &key)

virtual void	Serialize (CXArchive &ar)

virtual void	OnKeyframesChanged (longuint classID) const

virtual CTimeRange	GetTimeRange (longuint classid=KEYFRAME_NULLID) const

virtual const C3DKeyframe *	GetConstKey (int time, unsigned int findKeyFlag, longuint classid=KEYFRAME_NULLID, int *findKeyTime=NULL) const
	Retrieve a keyframe at / before or after the specified time depending on findKeyFlag.

Public Member Functions inherited from C3DAnimatable
int	GetKeyTime (int time, unsigned int pos, longuint classid=KEYFRAME_NULLID)

Member Enumeration Documentation

◆ KeyframeFlags

enum C3DKeyframable::KeyframeFlags

Enumerator
KEYFRAME_REPLACE_KEY	The created keyframe replaces the previous one.
KEYFRAME_DONT_EVALUATE	The created is not evaluate during creation. If not specified, the created keyframe is the interpolation of the adjacent keyframes.

Member Function Documentation

◆ GetConstKey()

virtual const C3DKeyframe * C3DKeyframable::GetConstKey	(	int	time,
		unsigned int	findKeyFlag,
		longuint	classid = `KEYFRAME_NULLID`,
		int *	findKeyTime = `NULL`
	)		const

virtual

Retrieve a keyframe at / before or after the specified time depending on findKeyFlag.

Implements C3DAnimatable.

◆ GetTimeRange()

virtual CTimeRange C3DKeyframable::GetTimeRange ( longuint classid = KEYFRAME_NULLID ) const
