This is the base class for any keyframe that is part of C3DKeyframable class. More...

Detailed Description

This is the base class for any keyframe that is part of C3DKeyframable class.

There is different kind of keyframe defined by KeyframeType. C3DKeyframe::GetClassID can be used to cast a C3DKeyframe to the appropriate class.

#include <3DKeyframe.h>

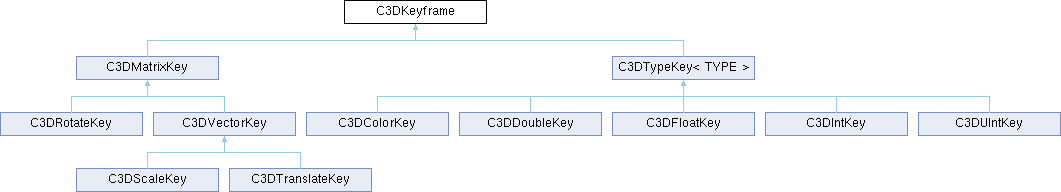

Inheritance diagram for C3DKeyframe:

Public Types
enum	KeyframeType { KEYFRAME_TYPE_NULLID = 0 , KEYFRAME_TYPE_MATRIX = MAKE_CUSTOM_ID('M', 'A', 'T', 'R') , KEYFRAME_TYPE_TRANS = MAKE_CUSTOM_ID('T', 'R', 'A', 'N') , KEYFRAME_TYPE_SCALE = MAKE_CUSTOM_ID('S', 'C', 'A', 'L') , KEYFRAME_TYPE_ROT = MAKE_CUSTOM_ID('R', 'O', 'T', 'A') , KEYFRAME_TYPE_VECTOR = MAKE_CUSTOM_ID('V', 'E', 'C', 'T') , KEYFRAME_TYPE_FLOAT = MAKE_CUSTOM_ID('F', 'L', 'O', 'A') , KEYFRAME_TYPE_DOUBLE = MAKE_CUSTOM_ID('D', 'O', 'U', 'B') , KEYFRAME_TYPE_INT = MAKE_CUSTOM_ID(' ', 'I', 'N', 'T') , KEYFRAME_TYPE_UINT = MAKE_CUSTOM_ID('U', 'I', 'N', 'T') , KEYFRAME_TYPE_COLOR = MAKE_CUSTOM_ID('C', 'O', 'L', 'O') }

typedef enum C3DKeyframe::KeyframeType	KeyframeType

Public Member Functions
void	SetKeyframes (C3DKeyframable *keyframes)

C3DKeyframable *	GetKeyframes () const

CCustomData &	GetCustomData ()

longuint	GetClassID () const

unsigned int	GetTypeID () const

unsigned int	GetContentID () const

C3DKeyframe *	Copy () const

void	SetKeyCurve (C3DKeyCurve *curve)

void	SetKeyCurve (const C3DKeyCurve &curve)

const C3DKeyCurve *	GetKeyCurve () const

C3DKeyCurve *	CreateCurve (unsigned int classid)

virtual void	Serialize (CXArchive &ar)

virtual bool	Evaluate (const C3DKeyframe &key1, const C3DKeyframe &key2, int time, const CTimeRange &range)

virtual bool	operator== (const C3DKeyframe &key) const

virtual C3DKeyframe &	CopyFrom (const C3DKeyframe &key)

Static Public Member Functions
static C3DKeyframe *	CreateKey (longuint classid, unsigned int curveClassid=C3DKeyCurve::KEYCURVE_NULLID)

Member Enumeration Documentation

Enumerator
KEYFRAME_TYPE_NULLID	Keyframe not defined. Can be also used to retrieve any kind of keyframe.
KEYFRAME_TYPE_MATRIX	C3DMatrixKey keyframe.
KEYFRAME_TYPE_TRANS	C3DTranslateKey keyframe.
KEYFRAME_TYPE_SCALE	C3DScaleKey keyframe.
KEYFRAME_TYPE_ROT	C3DRotateKey keyframe.
KEYFRAME_TYPE_VECTOR	C3DVectorKey keyframe.
KEYFRAME_TYPE_FLOAT	C3DFloatKey keyframe.
KEYFRAME_TYPE_DOUBLE	C3DDoubleKey keyframe.
KEYFRAME_TYPE_INT	C3DIntKey keyframe.
KEYFRAME_TYPE_UINT	C3DUIntKey keyframe.
KEYFRAME_TYPE_COLOR	C3DColorKey keyframe.

The documentation for this class was generated from the following file:
