C3DAnimatable Class Reference

C3DAnimatable is the base class for any object which inherits an animation. More...

Detailed Description

C3DAnimatable is the base class for any object which inherits an animation.

A C3DScene is not directly animatable but inherits animation as it contains C3DSceneNode which are animated. Any classe which derive from C3DKeyframable are animatable.

#include <3DAnimatable.h>

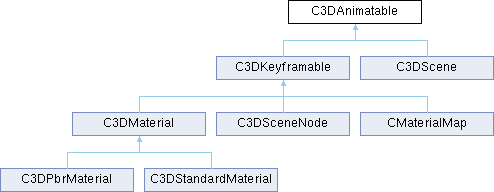

Inheritance diagram for C3DAnimatable:

Public Types
enum	FindKey { KEYFRAME_PREV = 0x01 , KEYFRAME_NEXT = 0x02 , KEYFRAME_SAME = 0x04 }

Public Member Functions
int	GetKeyTime (int time, unsigned int pos, longuint classid=KEYFRAME_NULLID)
virtual CTimeRange	GetTimeRange (longuint classid=KEYFRAME_NULLID) const =0
virtual const C3DKeyframe *	GetConstKey (int time, unsigned int pos, longuint classid=KEYFRAME_NULLID, int *findKeyTime=NULL) const =0

Member Enumeration Documentation

FindKey

enum C3DAnimatable::FindKey

Enumerator
KEYFRAME_PREV	Retrieves closest keyframe after the given time.
KEYFRAME_NEXT	Retrieves closest keyframe before the given time.
KEYFRAME_SAME	Retrieves keyframe at the given time.

Member Function Documentation

GetConstKey()

virtual const C3DKeyframe * C3DAnimatable::GetConstKey ( int  time, unsigned int  pos, longuint  classid = KEYFRAME_NULLID, int *  findKeyTime = NULL  ) const

pure virtual

Implemented in C3DKeyframable.

---

The documentation for this class was generated from the following file:

• D:/VS2022-PolygonCruncherSDK-Full-IO/SDK/Includes/3DAnimatable.h
